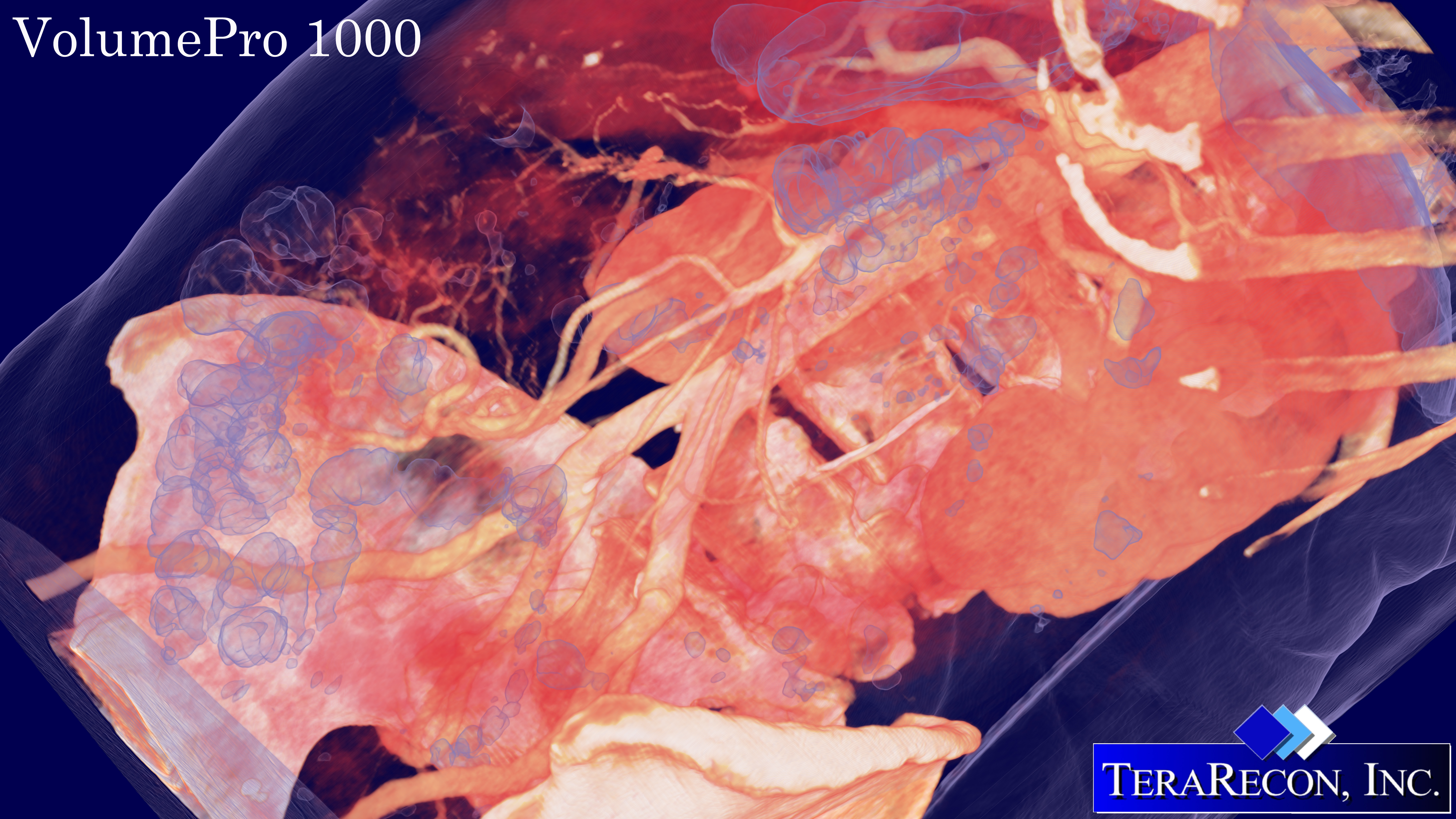

Volume Rendering for 3D GEEKs

VolumePro Timeline - Started as a research project at MERL, then spun out to RTViz and then aquired by TeraRecon. We are working on the 3rd generation ASIC.

H. Pfister, J. Hardenbergh, J. Knittel, H. Lauer, and L. Seiler. The volumepro real-time ray-casting system. In Proceedings of SIGGRAPH 99, pages 251--260, August 1999. MERL TechReport and SIGGRAPH99 Paper DOI=http://doi.acm.org/10.1145/311535.311563

The VolumePro 1000 was described in a paper at I3D by Yin Wu, Hugh Lauer, et al.
Wu, Y., Bhatia, V., Lauer, H., and Seiler, L. 2003. Shear-image order ray casting volume rendering. In Proceedings of the 2003 Symposium on interactive 3D Graphics (Monterey, California, April 27 - 30, 2003). SI3D '03. ACM Press, New York, NY, 152-162. DOI=http://doi.acm.org/10.1145/641480.641510


image litegood.jpg

Emissive Clip Planes for Volume Rendering
http://doi.acm.org/10.1145/965400.965502

image coloncut.jpg
Cutting thru homogeneous material gives
crazy small gradients to confuse viewer.
image colemisv.jpg
Placing an emissive cutplane over the noise
allows lighting the true surfaces.
image fig3_400.jpg
SIGGRAPH 2004 Poster
image may14a.jpg

fMRI Visualization
fMRI

poster thumbnail
Integrated 3D Visualization of fMRI and DTI Tractography
http://doi.ieeecomputersociety.org/10.1109/VIS.2005.58

image fig1_400.jpg
Good overview shot
geo colt
Geophysical data is volume data.

Glow Rendering

Glow is short for physics based rendering with global illumination.

Glow rendering is part of TeraRecon Advanced Imaging. It is based on the integration of open source from PBRT, Filament and others. The code has been modified under the direction of the first person I hired onto the VolumePro team, TC Zhao. TC & Vikram Simha developed AqNet, the basis of the TeraRecon business. TC recently retired as CTO & VP of Development. He has a PhD in light transport, which was REALLY useful for understanding the algorithms.

image BrainAneurysmGlow.jpg
BrainAneurysm w. Glow Rendering
image ElbowLarge3.png
Elbow with Hardware
image FullStan_Filament.png


Notes

Front to Back blending is possible with a buffer to accumulate alpha. The normal back to front blending:

ColorAccum   = (1 - OpacityNew)*ColorAccum + ColorNew
OpacityAccum = (1 - OpacityNew)*OpacityAccum + OpacityNew

Front to Back

ColorAccum   = (1 - OpacityAccum)*ColorNew + ColorAccum
OpacityAccum = (1 - OpacityAccum)*OpacityNew + OpacityAccum

from:
A coherent projection approach for direct volume rendering.
Jane Wilhelms (R.I.P. 2005), Allen Van Gelder: SIGGRAPH 1991: 275-284
